PLA
A good choice for dry indoor use when appearance, detail and stiffness are the main priorities.
Ready-made 3D printed product

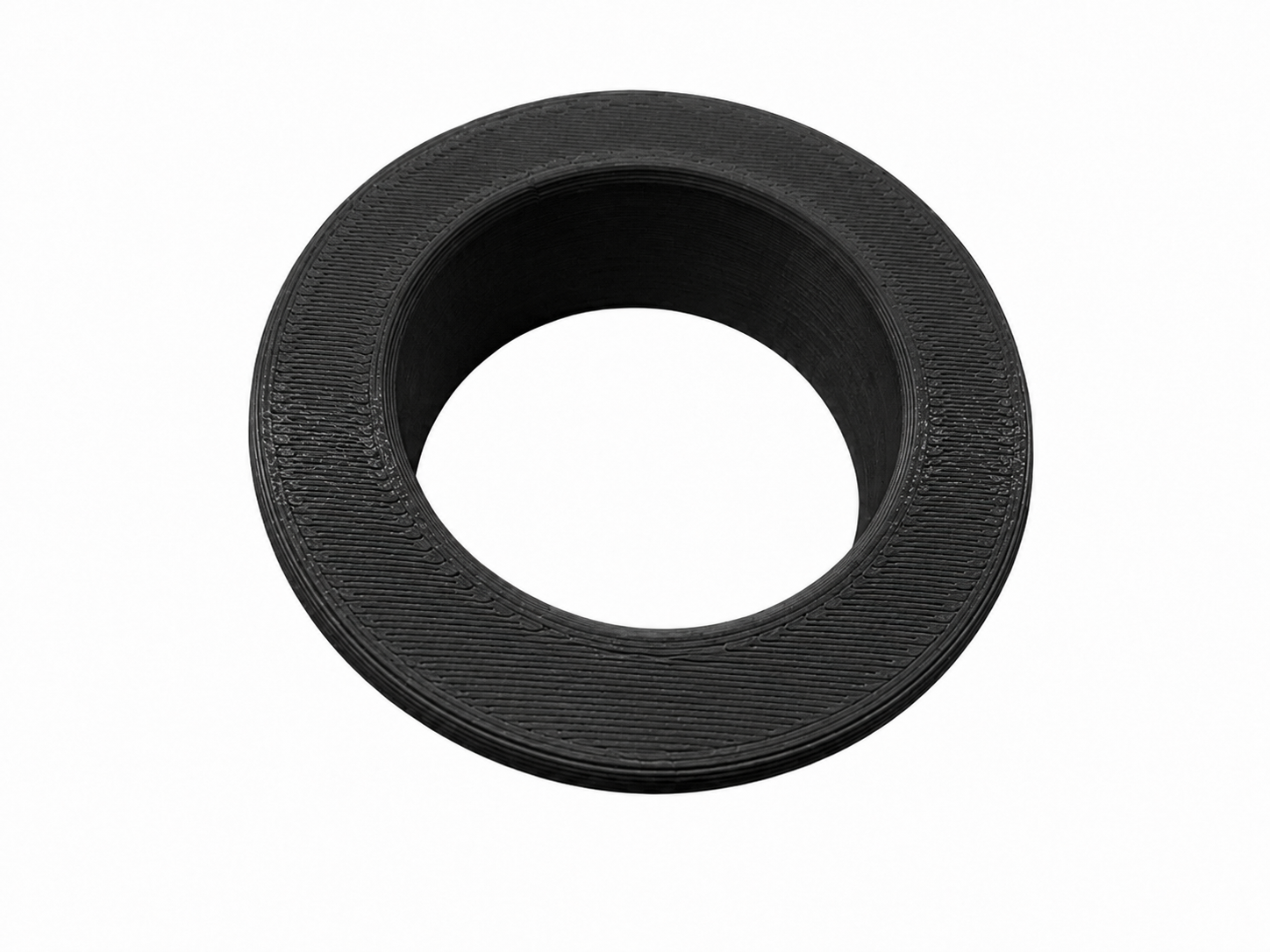

45 mm masking grommet
5/5 · 1 reviewA clean masking grommet for finishing a 45 mm opening in furniture boards, worktops and technical enclosures.

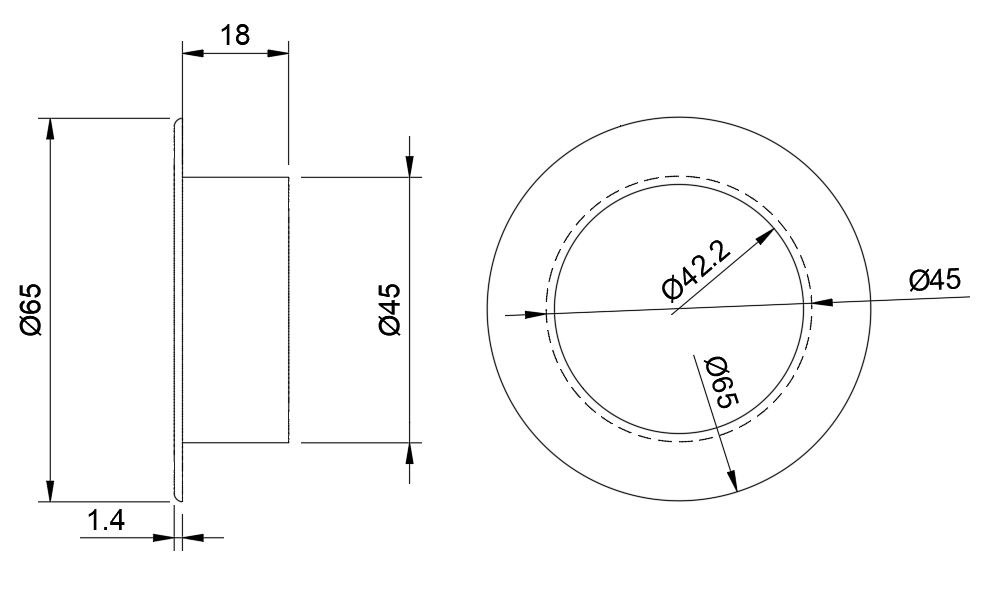

- External dimensions
- 65 × 65 × 19.4 mm
- STL solid volume
- 5.969 cm³
The calculator applies the selected material, colour, quality and quantity. The quoted result is the final order price with no hidden charges.
Applications
What is 45 mm masking grommet used for?
A masking grommet acts as a trim and pass-through. Its flange covers the cut edge while the inserted sleeve keeps the part stable in the board. It is useful for:
- ✓finishing cable and installation openings in furniture and worktops
- ✓protecting and covering a raw or uneven cut edge
- ✓cleanly masking an opening made with a 45 mm hole saw
Printing material
PLA, PETG or ABS for a masking grommet?
PETG
Recommended for moisture, frequent handling and practical everyday or workshop use.
ABS
Choose it for technical parts that should cope better with elevated temperature.
ASA
Designed for outdoor use where weather and UV resistance matter.
TPU 95A
A flexible option for unusual applications where the part should bend instead of remaining rigid.
Nylon
A technical, wear-resistant option for demanding parts exposed to friction and repeated loads.
Available colours are shown after opening the model in the calculator. The final surface may vary slightly with the material, colour and selected layer height.
Why this model
A masking grommet printed to order
A clean opening finish
The flange covers the raw or uneven edge left by the hole saw and improves the appearance of the finished installation.
Printed for your application
Choose the material, colour, surface quality and required quantity in the calculator.
Custom dimensions available
If a standard version does not fit, use the custom-size configurator to prepare a matching model.
Custom dimensions
The standard size does not fit?
Enter the opening diameter, board thickness, flange diameter and quantity. The configurator generates the matching model and sends it to the exact quote.
Open the dimension configuratorFrequently asked questions
Questions about 3D printed masking grommets
Will this 45 mm grommet fit a 45 mm opening?
The model has a nominal mounting diameter of 45 mm. Measure the actual opening before ordering because hole-saw accuracy and edge finish can affect the fit.
Which material should I choose?
PLA works well for dry interiors and furniture. PETG is recommended for moisture, while ABS is worth considering for elevated temperature.
Can I order a different size?
Yes. Enter the opening diameter, board thickness and flange diameter in the custom-size configurator.
Does solid volume equal filament use?
No. Solid volume describes the full STL geometry. Actual filament use depends on material, perimeters, infill and print settings and is calculated separately.
